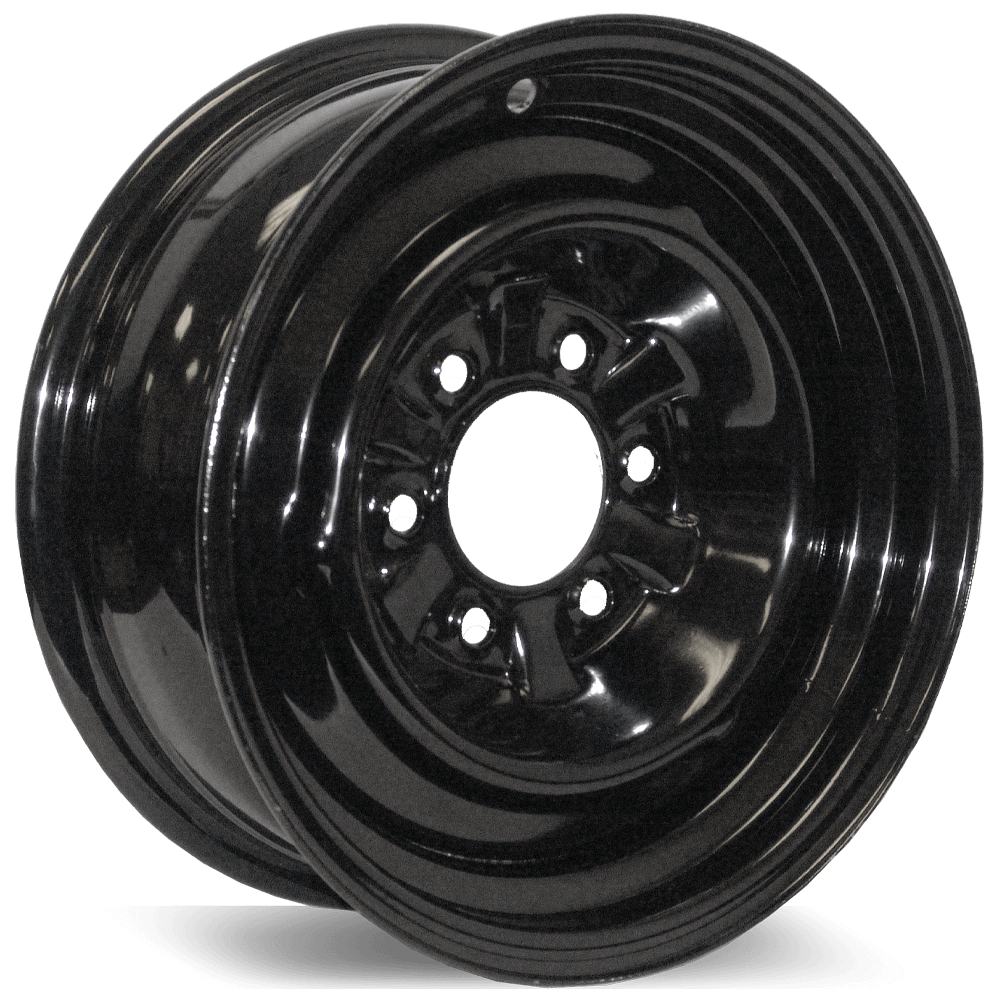

CONVENTIONAL

CONVENTIONAL
shown in color code 1T black

CONVENTIONAL

Wheel Offset:

Inset = Positive (+) moves tire towards the centerline of the trailer.

Outset = Negative (-) moves tire away form the centerline of the trailer

SPECIFICATIONS
Base Part Number
(xx - refer to
color chart)
Rim Size and
Bead Contour
Bolt Hole
Pattern
Pilot
Diameter
(inches)
Stud Size
Lug Chamfer
Center
Offset
(inches)
Load
Capacity
(lbs)
017-078-xx13 x 4.5 JJ5-4.52.621/2"-20 60°+ .501480
017-114-xx14 x 5.5 JJ5-4.52.621/2"-20 60°+ .502200
017-115-xx15 x 5 JJ5-4.52.621/2"-20 60°+ .501820
017-116-xx15 x 5 JJ6-5.53.651/2"-20 60°+ .501680
017-117-xx15 x 6 JJ5-4.52.621/2"-20 60°+ .501820
017-118-xx15 x 6 JJ6-5.53.651/2"-20 60°02600
017-235-xx16 x 6 K6-5.53.651/2"-20 60°03050
017-153-xx16 x 6 K8-6.54.891/2"-20 60°+ .503750
017-153-xx16 x 6 K8-6.54.899/6"-18 60°+ .503750
017-302-xx16 x 6 K8-6.54.891/2"-20 60°+ .504400
0174-302-xx16 x 6 K8-6.54.899/16"-18 60°+ .504400
017-301-xx16.5 x 6.75L6-5.53.651/2"-20 60°+ 0.53040
017-236-xx16.5 x 6.75L6-5.53.651/2"-20 60°03040
017-154-xx16.5 x 6.75L8-6.54.891/2"-20 60°+ 0.53530
017-154-xx16.5 x 6.758-6.54.899/16"-18 60°+ .503530
