DUAL WHEELS

DUAL WHEELS

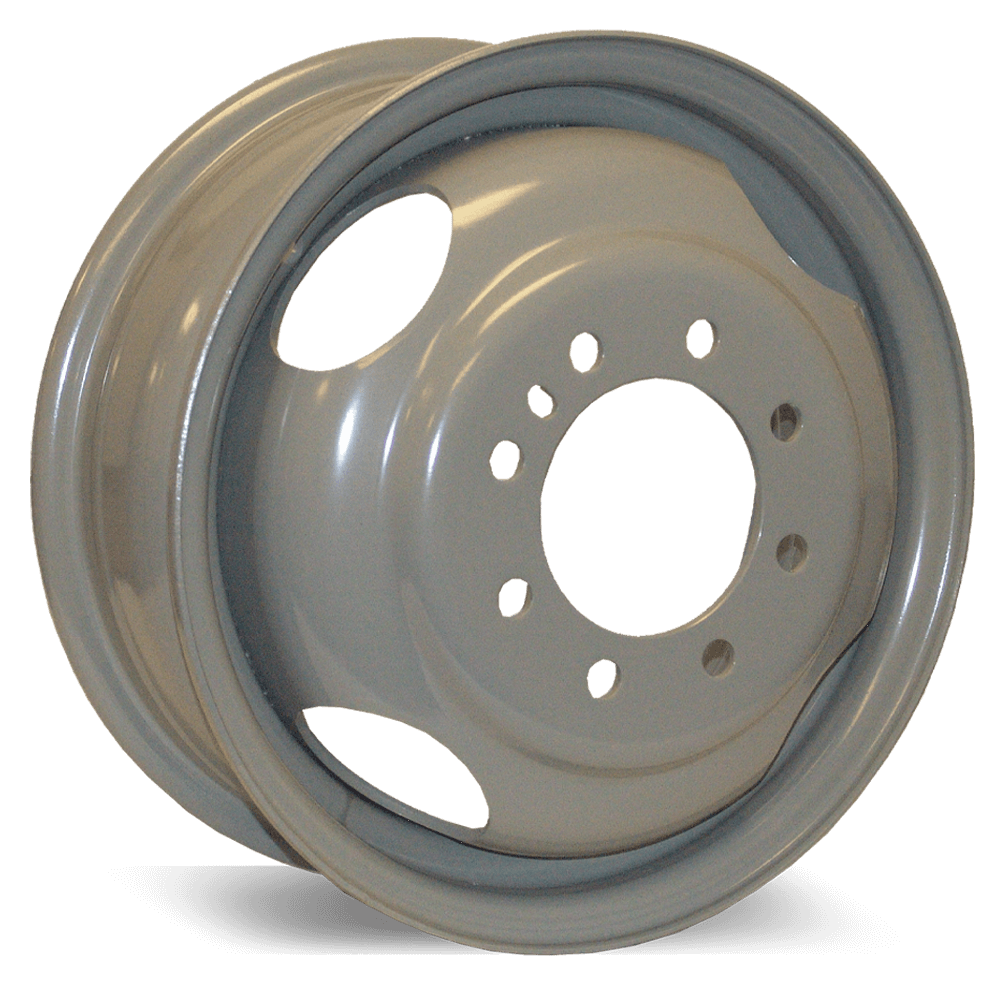

shown in color code 25 E-Coat grey

DUAL WHEELS

Note: Hub Piloted Wheels require flange nuts

Wheel Offset:

Inset = Positive (+) moves tire towards the centerline of the trailer.

Outset = Negative (-) moves tire away form the centerline of the trailer

SPECIFICATIONS
Base Part Number
(xx - refer to
color chart)
Rim Size and
Bead Contour
Bolt Hole
Pattern
Pilot
Diameter
(inches)
Stud Size
Lug Chamfer
Center
Offset
(inches)
Load
Capacity
(lbs)
017-186-xx14.5 x 7 MH8-6.54.755/8" - 18- 5.653000
017-279-xx16 x 6 HK8-6.54.755/8" - 18- 5.503000
017-158-xx16 x 6 HK8-6.54.565/8" - 18- 5.503000
017-160-xx16 x 6 HK8-6.54.885/8" - 18- 5.503000
017-157-xx16.5 x 6.75H8-6.54.755/8" - 18- 5.503000
017-159-xx16.5 x 6.75H8-6.54.565/8" - 18- 5.503000
017-161-xx16.5 x 6.75H8-6.54.885/8" - 18- 5.503000
