MOD

MOD

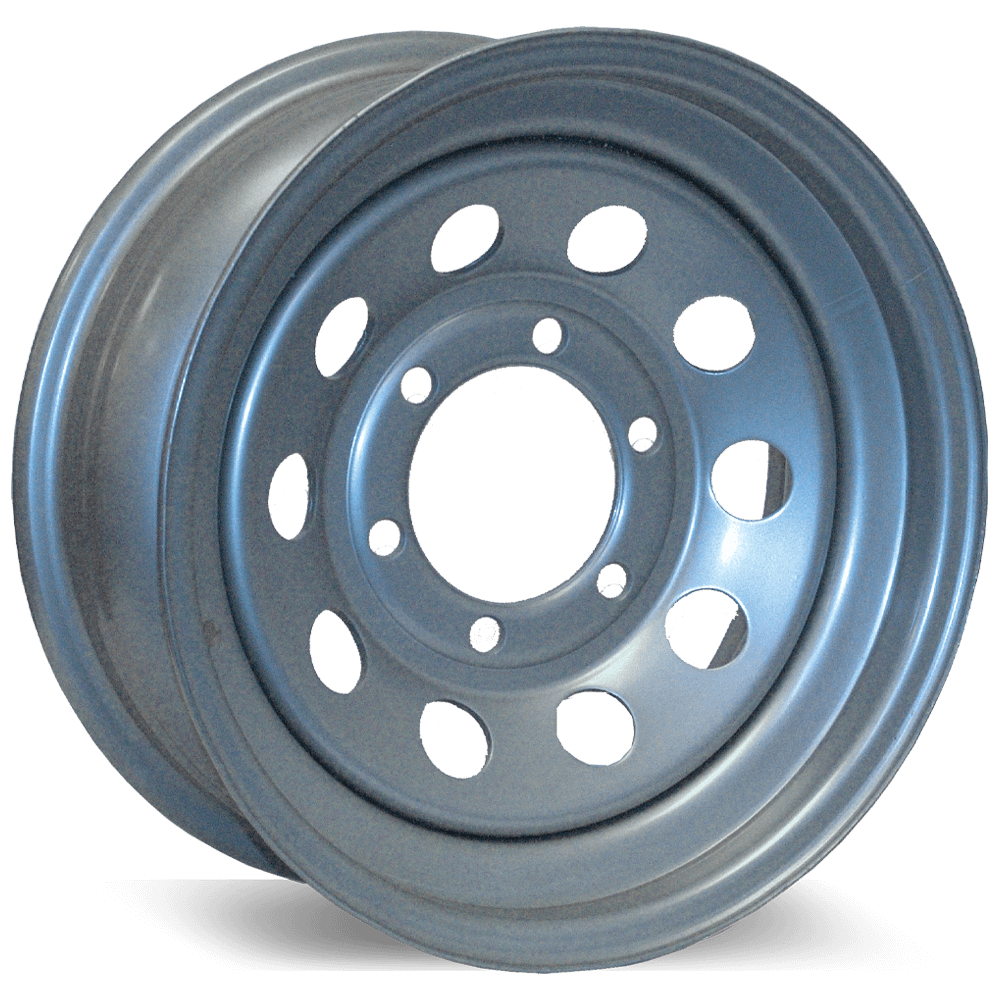

shown in 60 silver

MOD

Wheel Offset:

Inset = Positive (+) moves tire towards the centerline of the trailer.

Outset = Negative (-) moves tire away form the centerline of the trailer

Base Part Number
(xx - refer to
color chart)
Rim Size and
Bead Contour
Bolt Hole
Pattern
Pilot
Diameter
(inches)
Stud Size
Lug Chamfer
Center
Offset
(inches)
Load
Capacity
(lbs)
017-227-xx12 x 4 JA4-4.02.841/2"-20 60°01250
017-228-xx12 x 4 JA5-4.53.191/2"-20 60°01250
017-366-xx12 x 4 JA5-4.53.191/2"-20 60°- .501520
017-355-xx13 x 4.5 JJ4-4.02.651/2"-20 60°01660
017-229-xx13 x 4.5 JJ5-4.53.191/2"-20 60°01725
017-230-xx14 x 5.5 JJ5-4.53.191/2"-20 60°02200
017-231-xx15 x 5 JJ5-4.53.191/2"-20 60°02200
017-377-xx15 x 5 JJ5-5.03.191/2"-20 60°02200
017-232-xx15 x 6 JJ5-4.53.191/2"-20 60°02200
017-430-xx15 x 6 JJ5-5.03.191/2"-20 60°02200
017-233-xx15 x 6 JJ6-5.54.271/2"-20 60°02860
017-255-xx16 x 6 LK6-5.54.271/2"-20 60°03300
017-281-xx16 x 6 K8-6.54.901/2"-20 60°+ .503461
017-281-xx 16 x 6 K8-6.54.909/16"-18 60°+ .503461
017-293-xx16 x 6 K8-6.54.901/2"-20 60°03540
017-293-xx16 x 6 K8-6.54.909/16"-18 60°03540
017-309-xx16 x 6 K8-6.54.901/2"-20 60°+ .504400
017-309-xx16 x 6 K8-6.54.909/16"-18 60°+ .504400
017-310-xx16 x 6 K8-6.54.901/2"-20 60°04400
017-310-xx16 x 6 K8-6.54.909/16"-18 60°04400
017-257-xx16.5 x 6.75L6-5.54.271/2"-20 60°03040
017-280-xx16.5 x 6.75L8-6.54.901/2"-20 60°+ .503530
017-280-xx16.5 x 6.758-6.54.909/16"-18 60°+ .503530
017-296-xx16.5 x 6.75L8-6.54.901/2"-20 60°03530
017-296-xx16.5 x 6.758-6.54.909/16"-18 60°03530
